SSTVF16859

13-bit 1:2 SSTL_2 registered buffer

SSTVF16859 Features

* s Stub-series terminated logic for 2.5 V VDD (SSTL_2) s Designed for PC1600-PC2700 (at 2.5 V) and PC3200 (at 2.6 V) applications s Pin and function compatible with JEDEC standard SSTV16859 s Supports SSTL_2 signal inputs as per JESD 8-9 s Flow-through architecture optimizes printed-circuit board lay

SSTVF16859 General Description

The SSTVF16859 is a 13-bit to 26-bit SSTL_2 registered driver with differential clock inputs, designed to operate between 2.3 V and 2.7 V for PC1600-PC2700 applications or between 2.5 V and 2.7 V for PC3200 applications. All inputs are compatible with the JEDEC standard for SSTL_2 with Vref normally.

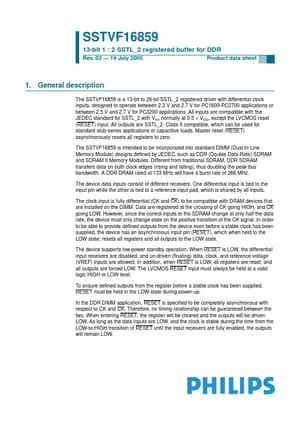

SSTVF16859 Datasheet (118.25 KB)

Preview of SSTVF16859 PDF

Datasheet Details

Part number:

SSTVF16859

Manufacturer:

NXP ↗

File Size:

118.25 KB

Description:

13-bit 1:2 sstl_2 registered buffer.
