TJA1020

LIN transceiver

NXP

TJA1020 Features

* General

* Baud rate up to 20 Kbaud

* Very low ElectroMagnetic Emission (EME)

* High ElectroMagnetic Immunity (EMI)

* Low slope mode for an even further reduction of EME

* Passive behaviour in unpowered state

* Input levels compatible with 3.3 and 5 V d

TJA1020 General Description

TJA1020 The TJA1020 is the interface between the LIN master/slave protocol controller and the physical bus in a Local Interconnect Network (LIN). It is primarily intended for in-vehicle sub-networks using baud rates from 2.4 up to 20 Kbaud. The transmit data stream of the protocol controller at th.

TJA1020 Datasheet (111.20 KB)

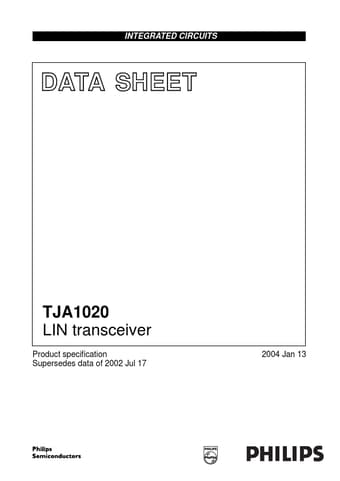

TJA1020 Datasheet Preview — Preview of TJA1020 PDF

Datasheet Details

Part number:

TJA1020

Manufacturer:

NXP ↗

File Size:

111.20 KB

Description:

Lin transceiver.
