TJA1021

ISO 17987/LIN 2.x/SAE J2602 transceiver

TJA1021 Features

* 2.1 General

* LIN 2.x/ISO 17987-4:2016 (12 V)/SAE J2602 compliant

* Baud rate up to 20 kBd (/20 and B variants)

* Very low ElectroMagnetic Emission (EME)

* High ElectroMagnetic Immunity (EMI)

* Passive behavior in unpowered state

* Input levels compati

TJA1021 General Description

The TJA1021 is the interface between the Local Interconnect Network (LIN) commander/ responder protocol controller and the physical bus in a LIN. It is primarily intended for invehicle sub-networks using baud rates from 1 kBd up to 20 kBd (/20 and B variants) and is compliant with LIN 2.0, LIN 2.1, .

TJA1021 Datasheet (340.56 KB)

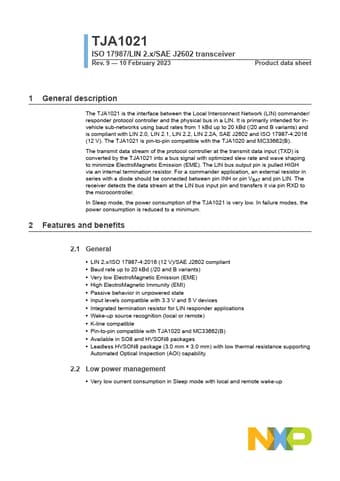

Preview of TJA1021 PDF

Datasheet Details

Part number:

TJA1021

Manufacturer:

NXP ↗

File Size:

340.56 KB

Description:

Iso 17987/lin 2.x/sae j2602 transceiver.
