TJA1050U, TJA1050, High speed CAN transceiver

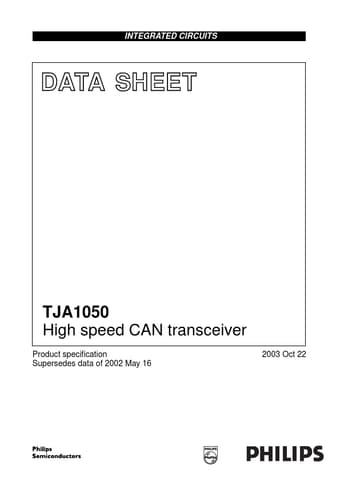

INTEGRATED CIRCUITS DATA SHEET TJA1050 High speed CAN transceiver Product speciﬁcation Supersedes data of 2002 May 16 2003 Oct 22 Philips Semicond.
The TJA1050 is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.

datasheet Preview Page 1 from Datasheet4u.com

TJA1050_PhilipsSemiconductors.pdf

TJA1050U Datasheet Preview — This datasheet PDF includes multiple part numbers: TJA1050U, TJA1050. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

TJA1050U, TJA1050

Manufacturer:

NXP ↗

File Size:

108.63 KB

Description:

High speed CAN transceiver

Note:

This datasheet PDF includes multiple part numbers: TJA1050U, TJA1050.
Please refer to the document for exact specifications by model.

Features

* Fully compatible with the “ISO 11898” standard
* High speed (up to 1 Mbaud)
* Very low ElectroMagnetic Emission (EME)
* Differential receiver with wide common-mode range for high ElectroMagnetic Immunity (EMI)
* An unpowered node does not disturb the bus lin

Applications

* using baud rates from 60 kbaud up to 1 Mbaud. It provides differential transmit capability to the bus and differential receiver capability to the CAN protocol controller. It is fully compatible to the “ISO 11898” standard. A current-limiting circuit protects the transmitter output stage from damage
