CLC030

SMPTE 292M/259M Digital Video Serializer with Video and Ancilliary Data FIFOs and Integrated Cable Driver

CLC030 Features

* n SDTV/HDTV serial digital video standard compliant n Supports 270 Mbps, 360 Mbps, 540 Mbps, 1.4835Gbps and 1.485 Gbps SDV data rates with auto-detection n LSB dithering option n No external serial data rate setting or VCO filtering components required

* n Fast PLL lock time: < 150µs typical at 1

CLC030 General Description

The CLC030 SMPTE 292M/259M Digital Video Serializer with Ancilliary Data FIFO and Integrated Cable Driver is a monolithic integrated circuit that encodes, serializes and transmits bit-parallel digital video data conforming to SMPTE 125M and 267M standard definition, 10-bit wide component video and S.

CLC030 Datasheet (329.51 KB)

Preview of CLC030 PDF

Datasheet Details

Part number:

CLC030

Manufacturer:

National Semiconductor

File Size:

329.51 KB

Description:

Smpte 292m/259m digital video serializer with video and ancilliary data fifos and integrated cable driver.
CLC030 SMPTE 292M/259M Digital Video Serializer with Video and Ancilliary Data FIFOs and Integrated Cable Driver PRELIMINARY February 2002 CLC030 SM.

📁 Related Datasheet

CLC031 - SMPTE 292M/259M Digital Video Deserializer / Descrambler (National Semiconductor)
.. CLC031 SMPTE 292M/259M Digital Video Deserializer / Descrambler with Video and Ancilliary Data FIFOs PRELIMINARY August 2003 CL.

CLC031A - SMPTE 292M/259M Digital Video Deserializer / Descrambler (National Semiconductor)
.. CLC031A SMPTE 292M/259M Digital Video Deserializer / Descrambler with Video and Ancillary Data FIFOs September 2004 CLC031A SMP.

CLC034 - SMPTE 292M / 259M Adaptive Cable Equalizer (National Semiconductor)
PRELIMINARY .. February 2005 CLC034 SMPTE 292M / 259M Adaptive Cable Equalizer CLC034 SMPTE 292M / 259M Adaptive Cable Equalizer Ge.

CLC001 - Serial Digital Cable Driver with Adjustable Outputs (National Semiconductor)
CLC001 Serial Digital Cable Driver with Adjustable Outputs March 2001 CLC001 Serial Digital Cable Driver with Adjustable Outputs General Description.

CLC001 - CLC001 Serial Digital Cable Driver with Adjustable Outputs (Rev. B) (ETCTI)
.

CLC002 - SMPTE 292M / 259M Serial Digital Cable Driver (National Semiconductor)
PRELIMINARY .. April 2005 CLC002 SMPTE 292M / 259M Serial Digital Cable Driver CLC002 SMPTE 292M / 259M Serial Digital Cable Driver.

CLC005 - ITU-T G.703 Cable Driver with Adjustable Outputs (National Semiconductor)
CLC005 ITU-T G.703 Cable Driver with Adjustable Outputs August 1998 CLC005 ITU-T G.703 Cable Driver with Adjustable Outputs General Description Nati.

CLC006 - Serial Digital Cable Driver with Adjustable Outputs (National Semiconductor)
CLC006 Serial Digital Cable Driver with Adjustable Outputs August 1998 CLC006 Serial Digital Cable Driver with Adjustable Outputs General Descriptio.

TAGS

CLC030 SMPTE 292M 259M Digital Video Serializer with Video and Ancilliary Data FIFOs and Integrated Cable Driver National Semiconductor

Image Gallery

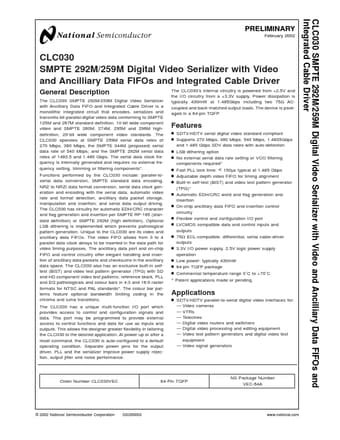

CLC030 Datasheet Preview Page 2 CLC030 Datasheet Preview Page 3
