CLC5902 Datasheet - National Semiconductor

CLC5902 Dual Digital Tuner/AGC

The CLC5902 block diagram is shown in Figure 2. The CLC5902 contains two identical digital down-conversion (DDC) circuits. Each DDC accepts a 14-bit sample at up to 52MSPS, down converts from a selected carrier frequency to baseband, decimates the signal rate by a programmable factor ranging from 3.

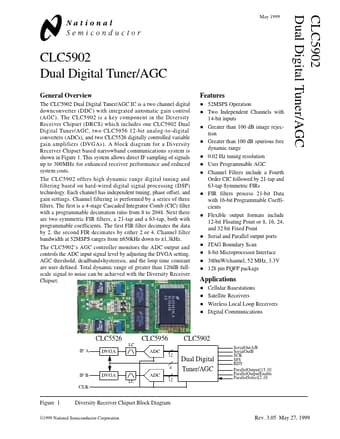

May 1999 CLC5902 Dual Digital Tuner/AGC N CLC5902 Dual Digital Tuner/AGC 0 0 General Overview The CLC5902 Dual Digital Tuner/AGC IC is a two channel digital downconverter (DDC) with integrated automatic gain control (AGC). The CLC5902 is a key component in the Diversity Receiver Chipset (DRCS) which includes one CLC5902 Dual Digital Tuner/AGC, two CLC5956 12-bit analog-to-digital converters (ADCs), and two CLC5526 digitally controlled variable gain amplifiers (DVGAs). A block diagram for a Di.

CLC5902 Features

* n 52MSPS Operation n Two Independent Channels with n n n n n n n n n n n n 14-bit inputs Greater than 100 dB image rejection Greater than 100 dB spurious free dynamic range 0.02 Hz tuning resolution User Programmable AGC Channel Filters include a Fourth Order CIC followed by 21-tap and 63-tap Symmet

CLC5902_NationalSemiconductor.pdf

CLC5902 Datasheet Preview — Preview of CLC5902 PDF

Datasheet Details

Part number:

CLC5902

Manufacturer:

National Semiconductor

File Size:

783.25 KB

Description:

Dual digital tuner/agc.
