CLC5957 - 12-bit/ 70MSPS Broadband Monolithic A/D Converter

National Semiconductor

The CLC5957 by National Semiconductor is a 12-bit/ 70MSPS Broadband Monolithic A/D Converter. Below is the official datasheet preview.

Datasheet Details

Part number	CLC5957
Manufacturer	National Semiconductor
File Size	631.62 KB
Description	12-bit/ 70MSPS Broadband Monolithic A/D Converter
Datasheet	CLC5957_NationalSemiconductor.pdf

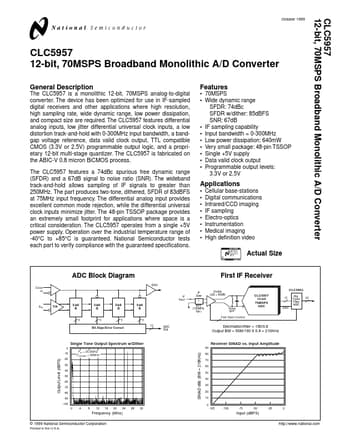

Additional preview pages of the CLC5957 datasheet.

The CLC5957 is a monolithic 12-bit, 70MSPS analog-to-digital converter.

differential analog inputs, low jitter differential universal clock inputs, a low distortion track-and-hold with 0-300MHz input bandwidth, a bandgap voltage reference, data valid clock output, TTL compatible CMOS (3.3V or 2.5V) programmable output logic, and a proprietary 12-bit multi-stage quantizer. The CLC5957 is fabricated on the ABIC-V 0.8 micron BiCMOS process. The CLC5957 features a 74dBc spurious free dynamic range (SFDR) and a 67dB signal to noise ratio (SNR). The wideband track-and-hol.
