CLC5956

12-bit/ 65 MSPS Broadband Monolithic A/D Converter

CLC5956 Features

* differential analog inputs, low jitter differential PECL clock inputs, a low distortion track-and-hold with DC to 300 MHz input bandwidth, a bandgap voltage reference, TTL compatible CMOS output logic, and a proprietary 12-bit multi-stage quantizer. The CLC5956 is fabricated on the ABIC-IV 0.8 micro

CLC5956 General Description

The CLC5956 is a monolithic 12-bit, 65 MSPS analog-to-digital converter subsystem. The device has been optimized for use in cellular base stations and other applications where high resolution, high sampling rate, wide dynamic range, low power dissipation, and compact size are required. The CLC5956 f.

CLC5956 Datasheet (391.97 KB)

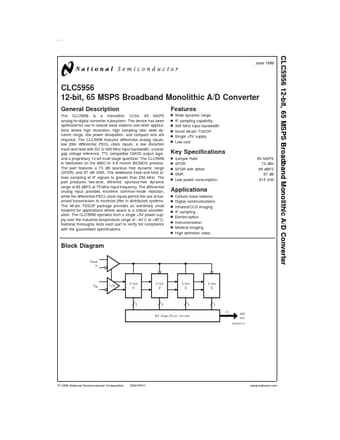

Preview of CLC5956 PDF

Datasheet Details

Part number:

CLC5956

Manufacturer:

National Semiconductor

File Size:

391.97 KB

Description:

12-bit/ 65 msps broadband monolithic a/d converter.
