CLC5958

14-bit/ 52MSPS A/D Converter

CLC5958 Features

* include differential analog inputs, low jitter differential clock inputs, an internal bandgap voltage reference, and CMOS/TTL compatible outputs. The CLC5958 is fabricated on the National ABIC-V 0.8 micron BiCMOS process. The CLC5958 features a 90dB spurious free dynamic range (SFDR) and a 70dB sign

CLC5958 General Description

The CLC5958 is a monolithic 14-bit, 52MSPS analog-to-digital converter. The ultra-wide dynamic range and high sample rate of the device make it an excellent choice for wideband receivers found in multi-channel basestations. The CLC5958 integrates a low distortion track-and-hold ampliļ¬er and a 14-bit.

CLC5958 Datasheet (1.58 MB)

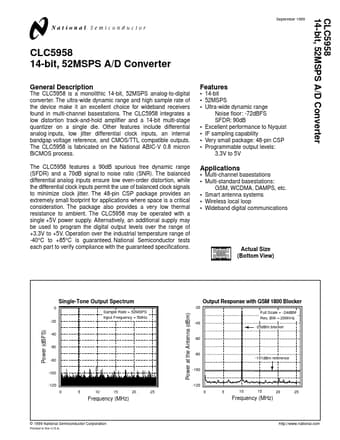

Preview of CLC5958 PDF

Datasheet Details

Part number:

CLC5958

Manufacturer:

National Semiconductor

File Size:

1.58 MB

Description:

14-bit/ 52msps a/d converter.
