DS90CP22 - 2X2 800 Mbps LVDS Crosspoint Switch

National Semiconductor

The DS90CP22 by National Semiconductor is a 2X2 800 Mbps LVDS Crosspoint Switch. Below is the official datasheet preview.

Datasheet Details

Part number	DS90CP22
Manufacturer	National Semiconductor
File Size	319.18 KB
Description	2X2 800 Mbps LVDS Crosspoint Switch
Datasheet	DS90CP22_NationalSemiconductor.pdf

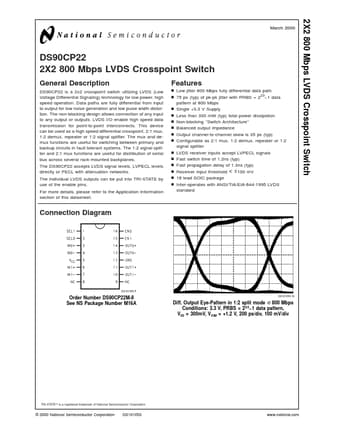

Additional preview pages of the DS90CP22 datasheet.

DS90CP22 is a 2x2 crosspoint switch utilizing LVDS (Low Voltage Differential Signaling) technology for low power, high speed operation.

n Low jitter 800 Mbps fully differential data path n 75 ps (typ) of pk-pk jitter with PRBS = 223.
1 data pattern at 800 Mbps n Single +3.3 V Supply n Less than 330 mW (typ) total power dissipation n Non-blocking ’’Switch Architecture’’ n Balanced output impedance n Output channel-to-channel skew is 35 ps (typ) n Configurable as 2:1 mux, 1:2 demux, repeater or 1:2 signal splitter n LVDS receiver inputs accept LVPECL signals n Fast switch time of 1.2ns (typ) n Fast propagation delay of 1.3n.
