DS90C241 - 5-MHz to 35-MHz DC-Balanced 24-Bit FPD-Link II Serializer/Deserializer

Texas Instruments

📥 Download Datasheet

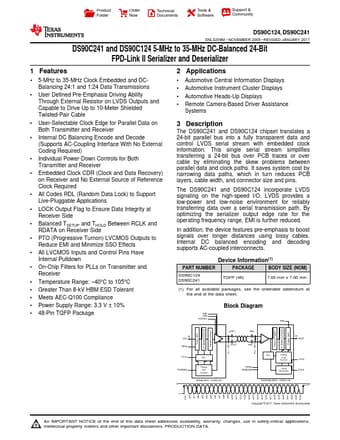

DS90C241 Datasheet Preview — Preview of DS90C241 PDF

Datasheet Details

Part number: DS90C241
Manufacturer: Texas Instruments ↗
File Size: 2.18 MB
Datasheet: DS90C241-etcTI.pdf
Description: 5-MHz to 35-MHz DC-Balanced 24-Bit FPD-Link II Serializer/Deserializer

DS90C241 Product details

Description

The DS90C241 and DS90C124 chipset translates a 24-bit parallel bus into a fully transparent data and control LVDS serial stream with embedded clock information..

Features

1 5-MHz to 35-MHz Clock Embedded and DCBalancing 24:1 and 1:24 Data Transmissions.
User Defined Pre-Emphasis Driving Ability Through External Resistor on LVDS Outputs and Capable to Drive Up to 10-Meter Shielded Twisted-Pair Cable.
User-Selectable Clock Edge for Parallel Data on Both Transmitter and Receiver.
Internal DC Balancing Encode and Decode (Supports AC-Coupling Interface With No External Coding Required).
Individual Power-Down Controls for Bo.
