DS90C2501 - Transmitter

Description

The DS90C2501 is a highly integrated scaling IC with LVDS transmitter with a scaled resolution up to SXGA+ for single pixel input.

The DS90C2501 is a video controller hub designed to be compatible with Graphic Memory Controller Hub (GMCH).

Features

  • n Complies with Open LDI and GMCH DVO specification for digital display interfaces n 25 to 65 MHz clock in single pixel in to single pixel out operation. n 50 to 130 MHz clock in single pixel in to dual pixel out operation. n Support 24bit/48bit color TFT LCD with Conventional and Non-Conventional Color Mappings. n Support 16bit/32bit color TFT LCD. n Single pixel transmitter inputs support single pixel GUI interface. n Up scaling/panel fitting supports VGA to SXGA+ output in single pixel input.

📥 Download Datasheet

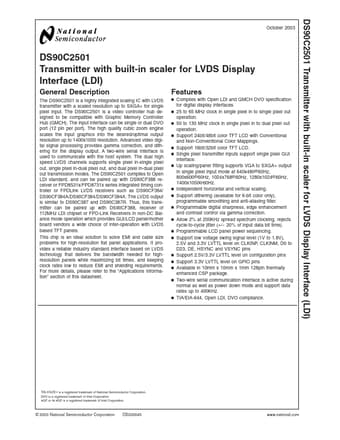

Datasheet preview – DS90C2501

📁 Similar Datasheet

  • DS90C241 - 5-MHz to 35-MHz DC-Balanced 24-Bit FPD-Link II Serializer/Deserializer (Texas Instruments)
  • DS90C031B - LVDS Quad CMOS Differential Line Driver (Texas Instruments)
  • DS90C031QML - LVDS Quad CMOS Differential Line Driver (Texas Instruments)
  • DS90C032 - LVDS Quad CMOS Differential Line Receiver (Texas Instruments)
  • DS90C032B - LVDS Quad CMOS Differential Line Receiver (Texas Instruments)
  • DS90C032QML - LVDS Quad CMOS Differential Line Receiver (Texas Instruments)
  • DS90C124 - 5-MHz to 35-MHz DC-Balanced 24-Bit FPD-Link II Serializer/Deserializer (Texas Instruments)
  • DS90C185 - Low Power 1.8V FPD-Link Serializer (Texas Instruments)
  • DS90C187 - 1.8-V Dual Pixel FPD-Link Serializer (Texas Instruments)
  • DS90C3201 - 3.3V 8 MHz to 135 MHz Dual FPD-Link Transmitter (Texas Instruments)
Other Datasheets by National Semiconductor
  • DS90C241 - 5-35MHz DC-Balanced 24-Bit LVDS Serializer and Deserializer
  • DS90C031 - LVDS Quad CMOS Differential Line Driver
  • DS90C031B - LVDS Quad CMOS Differential Line Driver
  • DS90C032 - LVDS Quad CMOS Differential Line Receiver
  • DS90C032B - LVDS Quad CMOS Differential Line Receiver
  • DS90C124 - 5-35MHz DC-Balanced 24-Bit LVDS Serializer and Deserializer
  • DS90C363 - +3.3V Programmable LVDS Transmitter
  • DS90C363A - +3.3V Programmable LVDS Transmitter

Full PDF Text Transcription

Click to expand full text
DS90C2501 Transmitter with built-in scaler for LVDS Display Interface (LDI) October 2003 DS90C2501 Transmitter with built-in scaler for LVDS Display Interface (LDI) General Description The DS90C2501 is a highly integrated scaling IC with LVDS transmitter with a scaled resolution up to SXGA+ for single pixel input. The DS90C2501 is a video controller hub designed to be compatible with Graphic Memory Controller Hub (GMCH). The input interface can be single or dual DVO port (12 pin per port). The high quality cubic zoom engine scales the input graphics into the desired/optimal output resolution up to 1400x1050 resolution. Advanced video digital signal processing provides gamma correction, and dithering for the display output.
