DS90CP02 - 1.5Gbps 2x2 LVDS Crosspoint Switch

Texas Instruments

The DS90CP02 by Texas Instruments is a 1.5Gbps 2x2 LVDS Crosspoint Switch. Below is the official datasheet preview.

📥 Download Datasheet

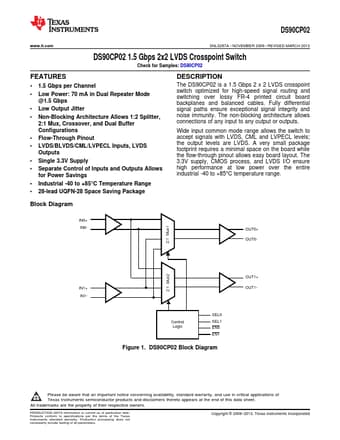

DS90CP02 1.5Gbps 2x2 LVDS Crosspoint Switch by Texas Instruments - Datasheet Preview — Official preview page of the **DS90CP02** 1.5Gbps 2x2 LVDS Crosspoint Switch datasheet (Texas Instruments).

Datasheet Details

Part number	DS90CP02
Manufacturer	Texas Instruments
File Size	819.95 KB
Description	1.5Gbps 2x2 LVDS Crosspoint Switch
Datasheet	DS90CP02-etcTI.pdf
Additional preview pages of the DS90CP02 datasheet.

DS90CP02 Product details

Description

The DS90CP02 is a 1.5 Gbps 2 x 2 LVDS crosspoint switch optimized for high-speed signal routing and switching over lossy FR-4 printed circuit board backplanes and balanced cables.

Features

1.
2 1.5 Gbps per Channel.
Low Power: 70 mA in Dual Repeater Mode @1.5 Gbps.
Low Output Jitter.
Non-Blocking Architecture Allows 1:2 Splitter, 2:1 Mux, Crossover, and Dual Buffer Configurations.
Flow-Through Pinout.
LVDS/BLVDS/CML/LVPECL Inputs, LVDS Outputs.
Single 3.3V Supply.
Separate Control of Inputs and Outputs Allows for Power Savings.
Industrial -40 to +85°C Temperature Range.
28-lead UQFN-28 Space S.
