DS90LT012AQ

Automotive LVDS Differential Line Receiver

DS90LT012AQ Features

* AECQ-100 Grade 1 -40 to +125°C temperature range operation Compatible with ANSI TIA/EIA-644-A Standard >400 Mbps (200 MHz) switching rates 100 ps differential skew (typical) 3.5 ns maximum propagation delay Integrated line

DS90LT012AQ General Description

The DS90LT012AQ is a single CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise, and high data rates. The devices are designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Swing (LVDS) technology The D.

DS90LT012AQ Datasheet (263.73 KB)

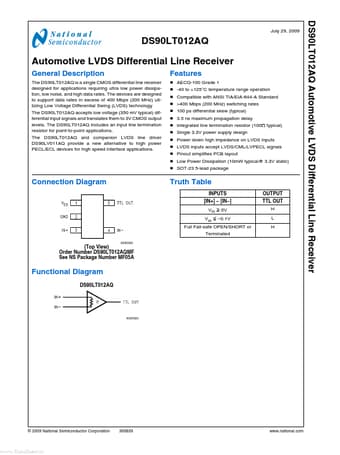

Preview of DS90LT012AQ PDF

Datasheet Details

Part number:

DS90LT012AQ

Manufacturer:

National Semiconductor

File Size:

263.73 KB

Description:

Automotive lvds differential line receiver.
