DS90LV004

4-Channel LVDS Buffer/Repeater

DS90LV004 Features

* 1

* 23 1.5 Gbps data rate per channel

* Configurable pre-emphasis drives lossy backplanes and cables

* Low output skew and jitter

* LVDS/CML/LVPECL compatible input, LVDS output

* On-chip 100Ω input and output termination

* 12 kV ESD protection on LVDS

DS90LV004 General Description

The DS90LV004 is a four channel 1.5 Gbps LVDS buffer/repeater. High speed data paths and flowthrough pinout minimize internal device jitter and simplify board layout, while configurable preemphasis overcomes ISI jitter effects from lossy backplanes and cables. The differential inputs interface to LV.

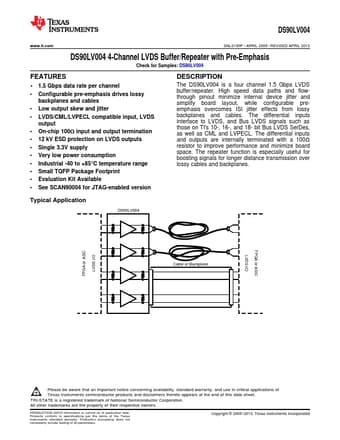

DS90LV004 Datasheet (455.01 KB)

Preview of DS90LV004 PDF

Datasheet Details

Part number:

DS90LV004

Manufacturer:

Texas Instruments ↗

File Size:

455.01 KB

Description:

4-channel lvds buffer/repeater.
DS90LV004 www.ti.com SNLS190P

* APRIL 2005

* REVISED APRIL 2013 DS90LV004 4-Channel LVDS Buffer/Repeater with Pre-Emphasis Check fo.
