DS90LV027AH

high temperature LVDS dual differential driver

Texas Instruments

DS90LV027AH Features

* 1

* 40°C to +125°C Operating Temperature Range

* >600-Mbps (300-MHz) Switching Rates

* 0.3-ns Typical Differential Skew

* 0.7-ns Maximum Differential Skew

* 3.3-V Power Supply Design

* Low power dissipation (46 mW at 3.3-V Static)

* Flo

DS90LV027AH General Description

The DS90LV027AH is a dual LVDS driver device optimized for high data rate and low power applications. The device is designed to support data rates in excess of 600Mbps (300MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The DS90LV027AH is a current mode driver allowing power dis.

DS90LV027AH Datasheet (0.99 MB)

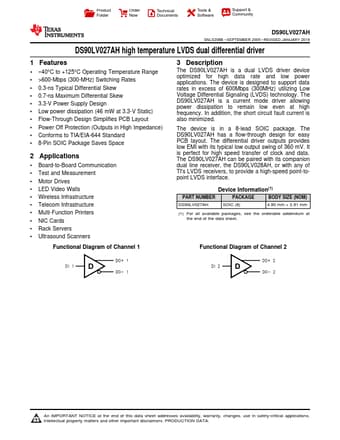

DS90LV027AH Datasheet Preview — Preview of DS90LV027AH PDF

Datasheet Details

Part number:

DS90LV027AH

Manufacturer:

Texas Instruments ↗

File Size:

0.99 MB

Description:

High temperature lvds dual differential driver.
Product Folder Order Now Technical Documents Tools & Software Support & Community DS90LV027AH SNLS206B

* SEPTEMBER 2005

* REVISED.
