DS90LV028AH

high temperature 3-V LVDS dual differential line receiver

DS90LV028AH Features

* 1

* 40°C to +125°C Operating Temperature Range

* >400-Mbps (200-MHz) Switching Rates

* 50-ps Differential Skew (Typical)

* 0.1-ns Channel-to-Channel Skew (Typical)

* 2.5-ns Maximum Propagation Delay

* 3.3-V Power Supply Design

* Flow-Th

DS90LV028AH General Description

The DS90LV028AH is a dual CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The D.

DS90LV028AH Datasheet (0.98 MB)

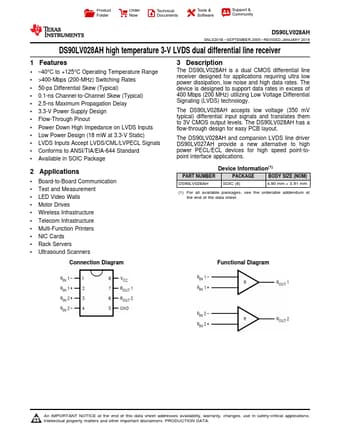

Preview of DS90LV028AH PDF

Datasheet Details

Part number:

DS90LV028AH

Manufacturer:

Texas Instruments ↗

File Size:

0.98 MB

Description:

High temperature 3-v lvds dual differential line receiver.
Product Folder Order Now Technical Documents Tools & Software Support & Community DS90LV028AH SNLS201B

* SEPTEMBER 2005

* REVISED.
