DS90LV028AQ-Q1

Automotive LVDS Dual Differential Line Receiver

DS90LV028AQ-Q1 Features

* 1 AECQ-100 Qualified for Automotive Applications

* Temperature Grade 1: -40°C to +125°C TA

* >400 Mbps (200 MHz) Switching Rates

* 50 ps Differential Skew (Typical)

* 0.1 ns Channel-to-Channel Skew (Typical)

* 2.5 ns Maximum Propagation Delay

DS90LV028AQ-Q1 General Description

The DS90LV028AQ is a dual CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The D.

DS90LV028AQ-Q1 Datasheet (747.20 KB)

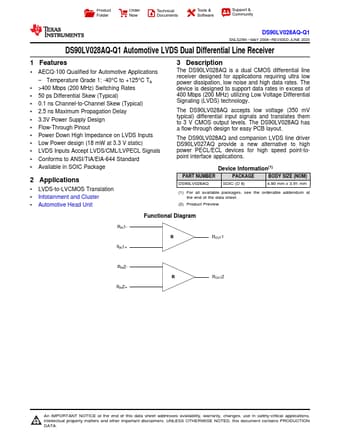

Preview of DS90LV028AQ-Q1 PDF

Datasheet Details

Part number:

DS90LV028AQ-Q1

Manufacturer:

Texas Instruments ↗

File Size:

747.20 KB

Description:

Automotive lvds dual differential line receiver.
Product Folder Order Now Technical Documents Tools & Software Support & Community DS90LV028AQ-Q1 SNLS299I

* MAY 2008

* REVISED JU.
