DS90LV018A Datasheet, Receiver, National Semiconductor

DS90LV018A Features

  • Receiver n n n n n n n n n n n n n > 400 Mbps (200 MHz) switching rates 50 ps differential skew (typical) 2.5 ns maximum propagation delay 3.3V power supply design Flow-through pinout Power dow

PDF File Details

Part number:

DS90LV018A

Manufacturer:

National Semiconductor

File Size:

241.91kb

Download:

📄 Datasheet

Description:

3v lvds single cmos differential line receiver. The DS90LV018A is a single CMOS differential line receiver designed for applications requiring ultra low power dissipation, low noise

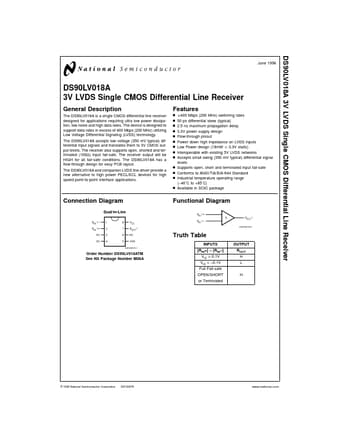

Datasheet Preview: DS90LV018A 📥 Download PDF (241.91kb)
Page 2 of DS90LV018A Page 3 of DS90LV018A

DS90LV018A Application

  • Applications requiring ultra low power dissipation, low noise and high data rates. The device is designed to support data rates in excess of 400 Mbp
