DS90LV011A

3V LVDS Single High Speed Differential Driver

DS90LV011A Features

* 1

* 2 Conforms to TIA/EIA-644-A Standard

* >400Mbps (200MHz) Switching Rates

* 700 ps (100 ps Typical) Maximum Differential Skew

* 1.5 ns Maximum Propagation Delay

* Single 3.3V Power Supply

* ±350 mV Differential Signaling

* Power Off Protectio

DS90LV011A General Description

The DS90LV011A is a single LVDS driver device optimized for high data rate and low power applications. The DS90LV011A is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized. The device is designed to su.

DS90LV011A Datasheet (969.26 KB)

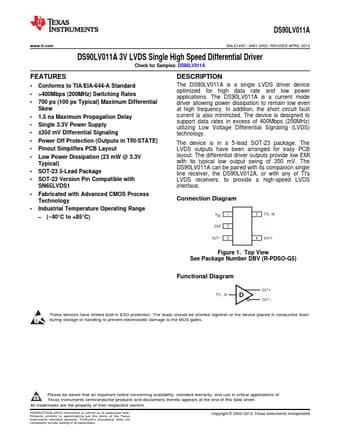

Preview of DS90LV011A PDF

Datasheet Details

Part number:

DS90LV011A

Manufacturer:

Texas Instruments ↗

File Size:

969.26 KB

Description:

3v lvds single high speed differential driver.
DS90LV011A www.ti.com SNLS140C

* MAY 2002

* REVISED APRIL 2013 DS90LV011A 3V LVDS Single High Speed Differential Driver Check for S.
