DS90LV011AH

High Temperature 3-V LVDS Differential Driver

DS90LV011AH Features

* 40°C to 125°C operating temperature range

* Conforms to TIA/EIA-644-A standard

* >400-Mbps (200-MHz) switching rates

* 700-ps (100-ps typical) maximum differential skew

* 1.5-ns maximum propagation delay

* Single 3.3-V power supply

DS90LV011AH General Description

The DS90LV011AH is an LVDS driver optimized for high data rate and low power applications. The DS90LV011AH is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized. The device is designed to support data.

DS90LV011AH Datasheet (1.81 MB)

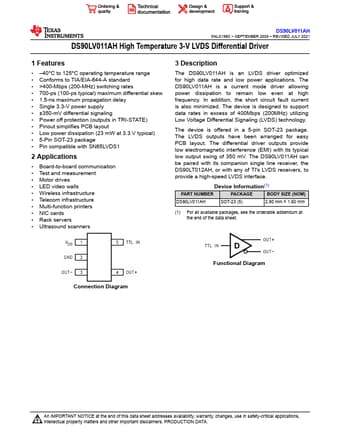

Preview of DS90LV011AH PDF

Datasheet Details

Part number:

DS90LV011AH

Manufacturer:

Texas Instruments ↗

File Size:

1.81 MB

Description:

High temperature 3-v lvds differential driver.
