DS90LV027

LVDS Dual High Speed Differential Driver

DS90LV027 Features

* 1

* 23 Ultra Low Power Dissipation

* Operating Range above 155 Mbps

* Flow-through pinout simplifies PCB layout

* Conforms to TIA/EIA-644 Standard

* 8-Lead SOIC Package Saves Space

* VCM ±1V center around 1.2V

* Low Differential Output Swing Typ

DS90LV027 General Description

The DS90LV027 is a dual LVDS driver device optimized for high data rate and low power applications. The DS90LV027 is a current mode driver allowing power dissipation to remain low even at high frequency. In addition, the short circuit fault current is also minimized. The device is in a 8-lead SOIC p.

DS90LV027 Datasheet (443.42 KB)

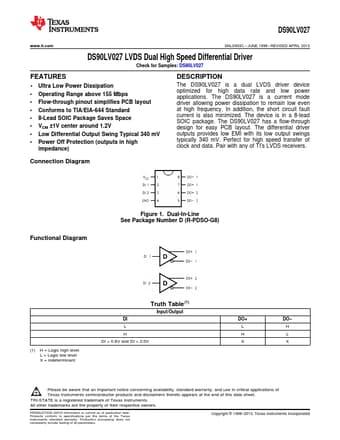

Preview of DS90LV027 PDF

Datasheet Details

Part number:

DS90LV027

Manufacturer:

Texas Instruments ↗

File Size:

443.42 KB

Description:

Lvds dual high speed differential driver.
DS90LV027 www.ti.com SNLS003C

* JUNE 1998

* REVISED APRIL 2013 DS90LV027 LVDS Dual High Speed Differential Driver Check for Samples.
