DS99R102 - (DS99R101 / DS99R102) 3-40MHz DC-Balanced 24-Bit LVDS Serializer and Deserializer

Product Overview

National Semiconductor

Datasheet Details

Part number	DS99R102
Manufacturer	National Semiconductor
File Size	938.07 KB
Description	(DS99R101 / DS99R102) 3-40MHz DC-Balanced 24-Bit LVDS Serializer and Deserializer
Datasheet	DS99R102 Datasheet
Note	This datasheet PDF includes multiple part numbers: DS99R102, DS99R101. Please refer to the document for exact specifications by model.

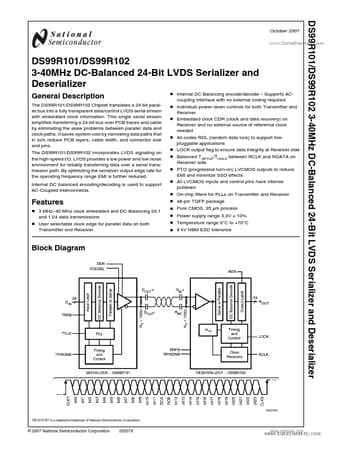

Additional preview pages of the DS99R102 datasheet.

Product details

Description

The DS99R101/DS99R102 Chipset translates a 24-bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information.

Features

es.
3 MHz.
40 MHz clock embedded and DC-Balancing 24:1 and 1:24 data transmissions Transmitter and Receiver.
User selectable clock edge for parallel data on both coupling interface with no external coding required Individual power-down controls for both Transmitter and Receiver Embedded clock CDR (clock and data recovery) on Receiver and no external source of reference clock needed All codes RDL (random data lock) to support livepluggable.
