DS99R103 - 3-40MHz DC-Balanced 24-Bit LVDS Serializer / Deserializer

Texas Instruments

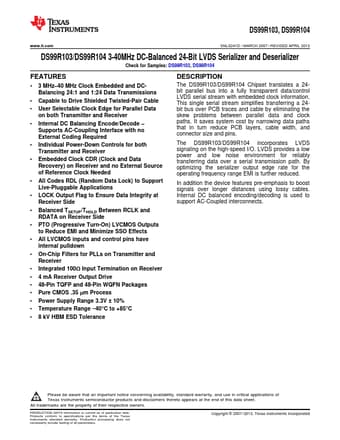

DS99R103 Datasheet Preview — Preview of DS99R103 PDF

Datasheet Details

Part number	DS99R103
Manufacturer	Texas Instruments ↗
File Size	1.03 MB
Description	3-40MHz DC-Balanced 24-Bit LVDS Serializer / Deserializer
Datasheet	DS99R103-etcTI.pdf

DS99R103 Product details

Description

The DS99R103/DS99R104 Chipset translates a 24bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information.

Features

1.
2 3 MHz.
40 MHz Clock Embedded and DCBalancing 24:1 and 1:24 Data Transmissions.
Capable to Drive Shielded Twisted-Pair Cable.
User Selectable Clock Edge for Parallel Data on both Transmitter and Receiver.
Internal DC Balancing Encode/Decode.
Supports AC-Coupling Interface with no External Coding Required.
Individual Power-Down Controls for both Transmitter and Receiver.
Embedded Clock CDR (Clock and Data Recovery) on Receiv.
