DS99R124AQ Datasheet - Texas Instruments

DS99R124AQ 5 - 43 MHz 18-bit Color FPD-Link II to FPD-Link Converter

The DS99R124AQ converts FPD-Link II to FPD-Link. It translates a high-speed serialized interface with an embedded clock over a single pair (FPD-Link II) to three LVDS data/control streams and one LVDS clock pair (FPD-Link). This serial bus scheme greatly eases system design by eliminating skew probl.

DS99R124AQ Features

* 1

* 2 5

* 43 MHz Support (140 Mbps to 1.2 Gbps Serial Link)

* 4-Channel (3 data + 1 clock) FPD-Link LVDS Outputs

* 3 Low-Speed Over-Sampled LVCMOS Outputs

* AC Coupled STP Interconnect up to 10 Meters in Length

* Integrated Input Termination

* @

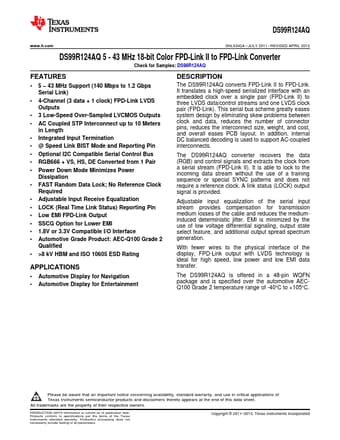

DS99R124AQ-etcTI.pdf

DS99R124AQ Datasheet Preview — Preview of DS99R124AQ PDF

Datasheet Details

Part number:

DS99R124AQ

Manufacturer:

Texas Instruments ↗

File Size:

0.99 MB

Description:

5 - 43 mhz 18-bit color fpd-link ii to fpd-link converter.
