DS99R105

3-40MHz DC-Balanced 24-Bit LVDS Serializer / Deserializer

Texas Instruments

DS99R105 Features

* 1

* 2 3 MHz

* 40 MHz Clock Embedded and DCBalancing 24:1 and 1:24 Data Transmissions

* Capable to Drive Shielded Twisted-Pair Cable

* User Selectable Clock Edge for Parallel Data on Both Transmitter and Receiver

* Internal DC Balancing Encode/Decode

* Sup

DS99R105 General Description

The DS99R105/DS99R106 Chipset translates a 24bit parallel bus into a fully transparent data/control LVDS serial stream with embedded clock information. This single serial stream simplifies transferring a 24bit bus over PCB traces and cable by eliminating the skew problems between parallel data and c.

DS99R105 Datasheet (1.02 MB)

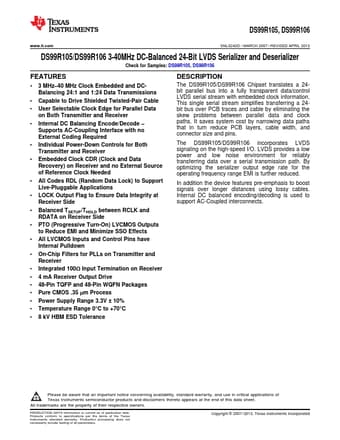

DS99R105 Datasheet Preview — Preview of DS99R105 PDF

Datasheet Details

Part number:

DS99R105

Manufacturer:

Texas Instruments ↗

File Size:

1.02 MB

Description:

3-40mhz dc-balanced 24-bit lvds serializer / deserializer.
DS99R105, DS99R106 www.ti.com SNLS242D

* MARCH 2007

* REVISED APRIL 2013 DS99R105/DS99R106 3-40MHz DC-Balanced 24-Bit LVDS Serializ.
