FPD93140

528-Ch Small Format a-Si AMLCD Controller / Column Driver

FPD93140 Features

* n 241 Outputs Accommodates from 2 to 240 Rows with a dummy row n Bumped Flip Chip Packaging (45um Row Centers) n 4 Flexible mounting/scan options provide for symmetric display layout n Wide Supply input range of 2.85V to 5.5V for direct connection to Li-Ion battery n Low Power < 100µA IQ n High Effi

FPD93140 General Description

The FPD93140 is a Low Power Gate Driver with Power Supply for Small Format LCD Displays. The FPD93140 and the companion FPD94128 (Controller / Column Driver with Integrated Frame Buffer) form a complete 2-chip solution for driving TFT LCD panels containing up to 176RGB X 240 pixels with versatile mo.

FPD93140 Datasheet (100.87 KB)

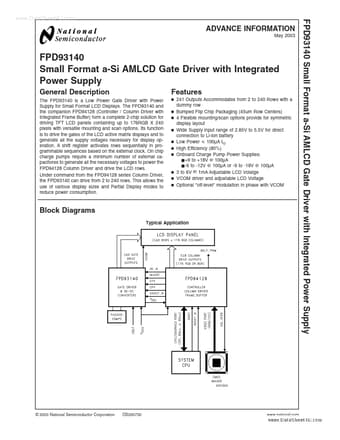

Preview of FPD93140 PDF

Datasheet Details

Part number:

FPD93140

Manufacturer:

National Semiconductor

File Size:

100.87 KB

Description:

528-ch small format a-si amlcd controller / column driver.
www.DataSheet4U.com FPD93140 Small Format a-Si AMLCD Gate Driver with Integrated Power Supply ADVANCE INFORMATION May 2003 FPD93140 Small Format a-.
