FPD94128

528-Ch Small Format a-Si AMLCD Controller / Column Driver

FPD94128 Features

* n Video port accepts 18-bit video (NTSC R’G’B’) or 8/16-bit video (BT.601 Y’CbCr 4:2:2) at up to 150 QCIF fps (4 Mpix/s). n CPU port accepts packed graphics data (1.1.1, 3.3.2, 4.4.4, 5.6.5, 6.6.6 RGB) via SPI or parallel 8/16-bit (80x/68x) interfaces Ordering Information NSID FPD93140 FPD94128 Fun

FPD94128 General Description

The FPD94128 is a Controller/Column Driver for use in low-power small format color TFT LCD displays. The FPD94128 contains a frame buffer, display refresh controller, programmable gamma reference, 528-channel column driver, and a backlight intensity modulator. The FPD94128 and the companion FPD93140.

FPD94128 Datasheet (120.79 KB)

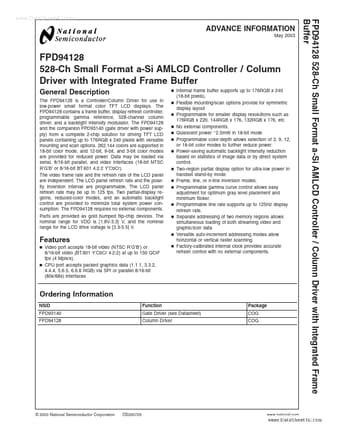

Preview of FPD94128 PDF

Datasheet Details

Part number:

FPD94128

Manufacturer:

National Semiconductor

File Size:

120.79 KB

Description:

528-ch small format a-si amlcd controller / column driver.
www.DataSheet4U.com FPD94128 528-Ch Small Format a-Si AMLCD Controller / Column Driver with Integrated Frame Buffer ADVANCE INFORMATION May 2003 FP.
