FPD1500P100 - 1W PACKAGED POWER PHEMT

FPD1500P100 Description

1W PACKAGED POWER PHEMT * .
AND APPLICATIONS The FPD1500P100 is a packaged AlGaAs/InGaAs pseudomorphic High Electron Mobility Transistor (PHEMT), featuring a 0.

FPD1500P100 Features

* 29.5 dBm Linear Output Power
* 18 dB Power Gain at 2 GHz
* 10.5 dB Maximum Stable Gain at 10 GHz
* 39 dBm Output IP3
* 45% Power-Added Efficiency at 2 GHz FPD1500P100

FPD1500P100 Applications

* The FPD1500P100 is a packaged AlGaAs/InGaAs pseudomorphic High Electron Mobility Transistor (PHEMT), featuring a 0.25 µm by 1500 µm Schottky barrier gate, defined by highresolution stepper-based photolithography. The recessed and offset Gate structure minimizes parasitics to optimize performance. Th

📥 Download Datasheet

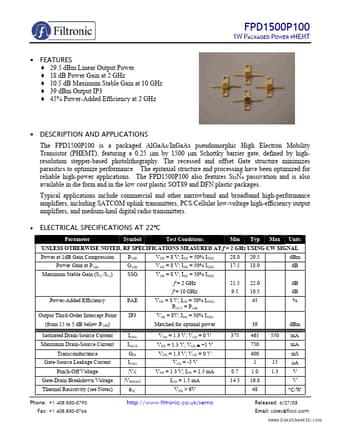

Preview of FPD1500P100 PDF
