FPD33680

TFT-LCD Column Driver

FPD33680 Features

* n RSDS (Reduced Swing Differential Signaling) data bus for low power, reduced EMI and small PCB foot print n 85MHz maximum operating frequency at VDD1=3.0V n RSDS pin location and RSDS Switch feature simplify PCB layout and improve EMI n Ideal for UXGA notebook applications n Smart Charge Conservati

FPD33680 General Description

The FPD33680 is a direct drive, 64 gray level, 480 output, TFT-LCD column driver with an RSDS™ data interface. It provides the capability to display 262,144 colors (18-bit color) with a large dynamic output range for twisted nematic applications. It is targeted to support SXGA applications up to a 7.

FPD33680 Datasheet (223.05 KB)

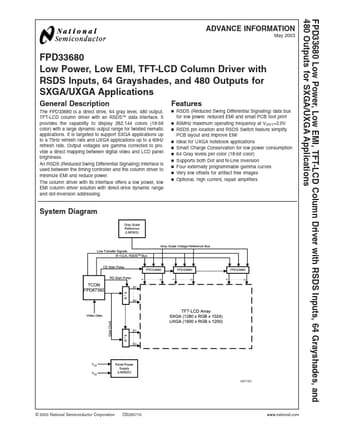

Preview of FPD33680 PDF

Datasheet Details

Part number:

FPD33680

Manufacturer:

National Semiconductor

File Size:

223.05 KB

Description:

Tft-lcd column driver.
FPD33680 Low Power, Low EMI, TFT-LCD Column Driver with RSDS Inputs, 64 Grayshades, and 480 Outputs for SXGA/UXGA Applications ADVANCE INFORMATION Ma.
