FPD33684A Datasheet - National Semiconductor

FPD33684A Low Power/ Low EMI/ TFT-LCD Column Driver with RSDS Inputs/ 64 Grayshades/ and 384 Outputs for XGA/SXGA Applications

The FPD33684 Column Driver is a direct drive, 64 gray level, 384 output, TFT-LCD column driver with an RSDS™ data interface. It provides the capability to display 262,144 colors (18-bit color) with a large dynamic output range for twisted nematic applications. When used in a bank with other FPD33684.

FPD33684A Features

* n RSDS™ (Reduced Swing Differential Signaling) data bus for low power, reduced EMI and small PCB foot print n Up to 85MHz clock n Supports both XGA and SXGA timing n Supports notebook and monitor applications n Smart Charge Conservation for low power consumption n 64 Gray levels per color (18-bit co

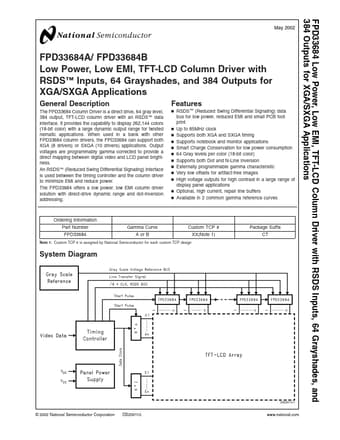

FPD33684A_NationalSemiconductor.pdf
