FPD33684B

Low Power/ Low EMI/ TFT-LCD Column Driver with RSDS Inputs/ 64 Grayshades/ and 384 Outputs for XGA/SXGA Applications

FPD33684B Features

* n RSDS™ (Reduced Swing Differential Signaling) data bus for low power, reduced EMI and small PCB foot print n Up to 85MHz clock n Supports both XGA and SXGA timing n Supports notebook and monitor applications n Smart Charge Conservation for low power consumption n 64 Gray levels per color (18-bit co

FPD33684B General Description

The FPD33684 Column Driver is a direct drive, 64 gray level, 384 output, TFT-LCD column driver with an RSDS™ data interface. It provides the capability to display 262,144 colors (18-bit color) with a large dynamic output range for twisted nematic applications. When used in a bank with other FPD33684.

FPD33684B Datasheet (233.93 KB)

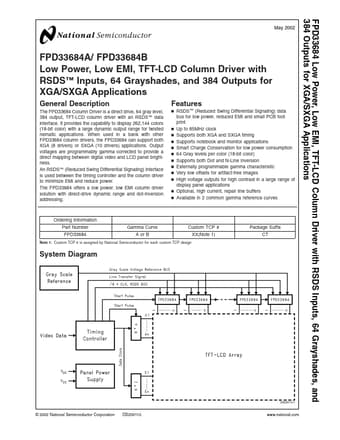

Preview of FPD33684B PDF

Datasheet Details

Part number:

FPD33684B

Manufacturer:

National Semiconductor

File Size:

233.93 KB

Description:

Low power/ low emi/ tft-lcd column driver with rsds inputs/ 64 grayshades/ and 384 outputs for xga/sxga applications.
FPD33684 Low Power, Low EMI, TFT-LCD Column Driver with RSDS Inputs, 64 Grayshades, and 384 Outputs for XGA/SXGA Applications May 2002 FPD33684A/ FP.
