2SB1216 - Bipolar Transistor

2SB1216 Description

2SB1216, 2SD1816 Bipolar Transistor ( *)100V, ( *)4A, Low VCE(sat), (PNP)NPN Single www.onsemi.com .

2SB1216 Features

* Low Collector to Emitter Saturation Voltage
* Small and Slim Package Facilitating Compactness of Sets
* High fT
* Good Linearity of hFE

2SB1216 Applications

* Suitable for Relay Drivers
* High Speed Inverters
* Converters

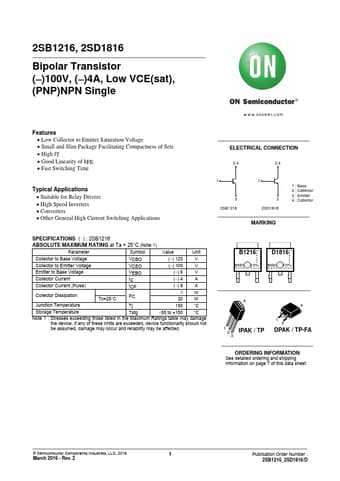

* Other General High Current Switching Applications ELECTRICAL CONNECTION 2,4 2,4 1 3 2SB1216 1 3 2SD1816 MARKING 1 : Base 2 : Collector 3 : Emitter 4 : Collector SPECIFICATIONS ( ) : 2SB1216 ABSO
