2SB817C - Bipolar Transistor

Datasheet Summary

Features

  • Large current capacitance.
  • Wide SOA and high durability against breakdown.
  • Adoption of MBIT process Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current Collector Current (Pulse) VCBO VCEO VEBO IC ICP Collector Dissipation PC Junction Temperature Storage Temperature Tj Tstg Tc=25°C Conditions Ratings -160 -140 --6 --12 --20 2.5 120 150 --55 to +1.

📥 Download Datasheet

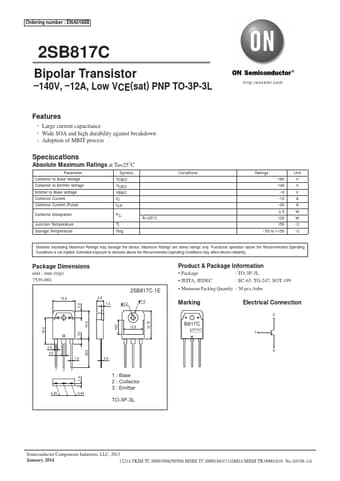

Datasheet preview – 2SB817C

Datasheet Details

Part number 2SB817C
Manufacturer ON Semiconductor
File Size 168.34 KB
Description Bipolar Transistor
Datasheet download datasheet 2SB817C Datasheet
Additional preview pages of the 2SB817C datasheet.

📁 Similar Datasheet

  • 2SB817C - PNP Epitaxial Planar Silicon Transistor (Sanyo Electric)
  • 2SB817C - PNP Transistor (INCHANGE)
  • 2SB817 - PNP Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
  • 2SB817 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SB817E - Power Transistor (TAITRON)
  • 2SB817E - PNP Transistor (INCHANGE)
  • 2SB810 - PNP SILICON TRANSISTOR (NEC)
  • 2SB812 - PNP Transistor (INCHANGE)
  • 2SB812 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB813 - PNP Transistor (INCHANGE)
Other Datasheets by ON Semiconductor
  • 2SB815 - Bipolar Transistor
  • 2SB826 - PNP / NPN Epitaxial Planar Silicon Transistors
  • 2SB892 - PNP / NPN Epitaxial Planar Silicon Transistors
  • 2SB1121 - Bipolar Transistor
  • 2SB1122 - Bipolar Transistor
  • 2SB1123 - Bipolar Transistor
  • 2SB1124 - Bipolar Transistor
  • 2SB1126 - PNP / NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text
Ordering number : ENA0188B 2SB817C Bipolar Transistor –140V, –12A, Low VCE(sat) PNP TO-3P-3L http://onsemi.com Features • Large current capacitance • Wide SOA and high durability against breakdown • Adoption of MBIT process Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current Collector Current (Pulse) VCBO VCEO VEBO IC ICP Collector Dissipation PC Junction Temperature Storage Temperature Tj Tstg Tc=25°C Conditions Ratings -160 -140 --6 --12 --20 2.5 120 150 --55 to +150 Unit V V V A A W W °C °C Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only.
