CAT28C16A - 16-kb CMOS Parallel EEPROM

ON Semiconductor

📥 Download Datasheet

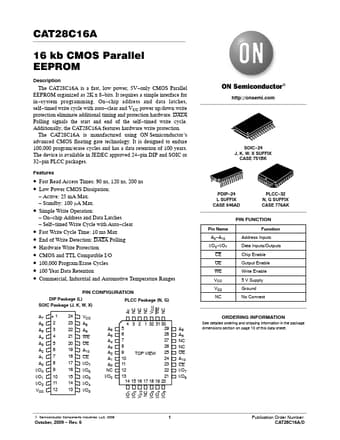

CAT28C16A Datasheet Preview — Preview of CAT28C16A PDF

Datasheet Details

Part number	CAT28C16A
Manufacturer	ON Semiconductor
File Size	123.93 KB
Description	16-kb CMOS Parallel EEPROM
Datasheet	CAT28C16A-ONSemiconductor.pdf

CAT28C16A Product details

Description

The CAT28C16A is a fast, low power, 5V only CMOS Parallel EEPROM organized as 2K x 8 bits. system programming. chip address and data latches, self timed write cycle with auto clear and VCC power up/down write protection eliminate additional timing and protection hardware. timed write cycle.

Features

hardware write protection. The CAT28C16A is manufactured using ON Semiconductor’s advanced CMOS floating gate technology. It is designed to endure 100,000 program/erase cycles and has a data retention of 100 years. The device is available in JEDEC approved 24.
pin DIP and SOIC or 32.
pin PLCC packages. Features.
Fast Read Access Times: 90 ns, 120 ns, 200 ns.
Low Power CMOS Dissipation:.
Active: 25 mA Max.
Standby: 100 mA Max.
Simple Wr.
