CM6100 Datasheet - ON Semiconductor

0.4mm Pitch Daisy Chain

CM6100 General Description

The 6100 is a 4-bump very low capacitance ESD protection device in 0.4mm CSP form factor. It is fully compliant with IEC 61000-4-2. The CM6100 is RoHS II compliant. Electrical Schematic / Pin Description WHERE X = A = ww01, ww02 B = ww03, ww04 C = ww05, ww06 D = ww06, ww08 E = ww08, ww10 F = ww11,.

CM6100 Datasheet (121.68 KB)

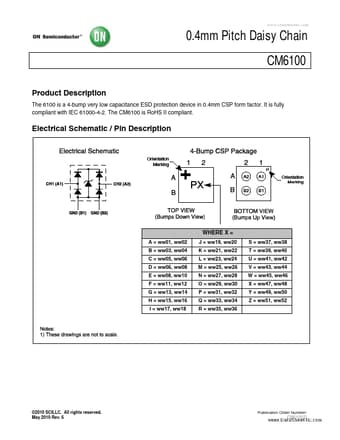

Preview of CM6100 PDF

Datasheet Details

Part number:

CM6100

Manufacturer:

ON Semiconductor ↗

File Size:

121.68 KB

Description:

0.4mm pitch daisy chain.
