CM6114

Single-Channel Transient Voltage Suppressor

CM6114 Features

* 4

* Bump, 0.8 mm X 0.8 mm Footprint Chip Scale Package (CSP)

* These Devices are Pb

* Free and are RoHS Compliant Table 1. PIN DESCRIPTIONS 4

* bump CSP Package Pin Description A1 Fuse Terminal 1 A2 TVS Channel / Fuse Terminal 2 B1 and B2 Device Ground Orientati

CM6114 General Description

The CM6114 is an Application Specific Integrated Passivet (ASIPt) component in a 2 x 2, 4

*bump, 0.4 mm pitch, CSP form factor. This device is designed for:

* Fuse

* Transient Voltage Suppression (TVS)

* Electrostatic Discharge Protection

* Electrical Overstres.

CM6114 Datasheet (153.43 KB)

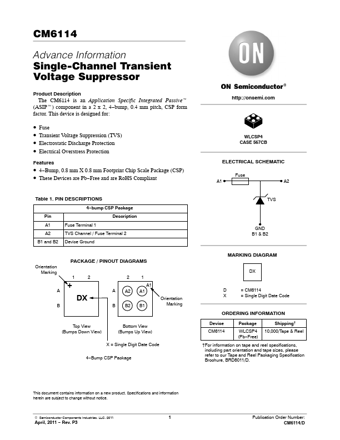

Preview of CM6114 PDF

Datasheet Details

Part number:

CM6114

Manufacturer:

ON Semiconductor ↗

File Size:

153.43 KB

Description:

Single-channel transient voltage suppressor.
