ESD5102

ESD Protection Diodes

ESD5102 Features

* Bi

* directional Dual Line ESD Protection

* Low Capacitance (5 pF Max, I/O to GND)

* Small Body Outline Dimensions: 0.705 x 0.23 mm

* Protection for the Following IEC Standards: IEC 61000

* 4

* 2 (Level 4)

* Low ESD Clamping Voltage

* These Devices are Pb

ESD5102 General Description

of survivability specs.  Semiconductor Components Industries, LLC, 2016 1 May, 2024

* Rev. 2 Publication Order Number: ESD5102/D ESD5102 ELECTRICAL CHARACTERISTICS (TA = 25C unless otherwise specified) Parameter Symbol Conditions Min Typ Reverse Working Voltage VRWM I/O Pin to.

ESD5102 Datasheet (442.86 KB)

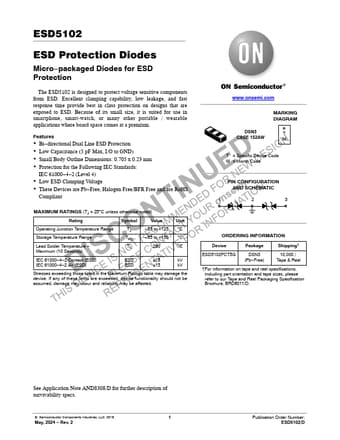

Preview of ESD5102 PDF

Datasheet Details

Part number:

ESD5102

Manufacturer:

ON Semiconductor ↗

File Size:

442.86 KB

Description:

Esd protection diodes.
ESD5102 ESD Protection Diodes Micro

*packaged Diodes for ESD Protection The ESD5102 is designed to protect voltage sensitive components from E.
