ESD5101

ESD Protection Diode

ESD5101 Features

* Low Capacitance (5 pF Max, I/O to GND)

* Small Body Outline Dimensions

* 01005 Size: 0.435 x 0.23 mm

* 0201 Size: 0.6 x 0.3 mm

* Protection for the Following IEC Standards: IEC 61000

* 4

* 2 (Level 4)

* Low ESD Clamping Voltage

ESD5101 General Description

of survivability specs. This document contains information on some products that are still under development. ON Semiconductor reserves the right to change or discontinue these products without notice. www.onsemi.com MARKING DIAGRAMS ESD5101 (01005) DSN2 CASE 152AK L ESD5101P (01005) DSN2 CASE .

ESD5101 Datasheet (187.04 KB)

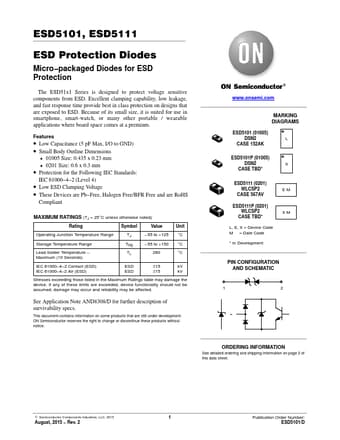

Preview of ESD5101 PDF

Datasheet Details

Part number:

ESD5101

Manufacturer:

ON Semiconductor ↗

File Size:

187.04 KB

Description:

Esd protection diode.
ESD5101, ESD5111 ESD Protection Diodes Micro

*packaged Diodes for ESD Protection The ESD51x1 Series is designed to protect voltage sensitive c.
