ESD5111 - ESD Protection Diode

Product Overview

ON Semiconductor

Datasheet Details

Part number	ESD5111
Manufacturer	ON Semiconductor
File Size	187.04 KB
Description	ESD Protection Diode
Datasheet	ESD5111 Datasheet
Note	This datasheet PDF includes multiple part numbers: ESD5111, ESD5101. Please refer to the document for exact specifications by model.

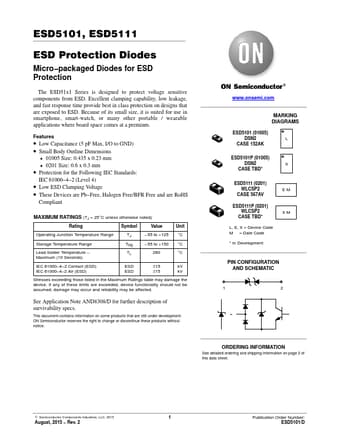

Additional preview pages of the ESD5111 datasheet.

Product details

Description

of survivability specs. X ESD5111 (0201) WLCSP2 CASE 567AV ESD5111P (0201) WLCSP2 CASE TBD L, E, X = Device Code M = Date Code In Development EM XM PIN CONFIGURATION AND SCHEMATIC 12 = ORDERING INF

Features

Low Capacitance (5 pF Max, I/O to GND).
Small Body Outline Dimensions.
01005 Size: 0.435 x 0.23 mm.
0201 Size: 0.6 x 0.3 mm.
Protection for the Following IEC Standards: IEC 61000.
4.
2 (Level 4).
Low ESD Clamping Voltage.
These Devices are Pb.
Free, Halogen Free/BFR Free and are RoHS Compliant.
