FDI045N10A N-Channel MOSFET

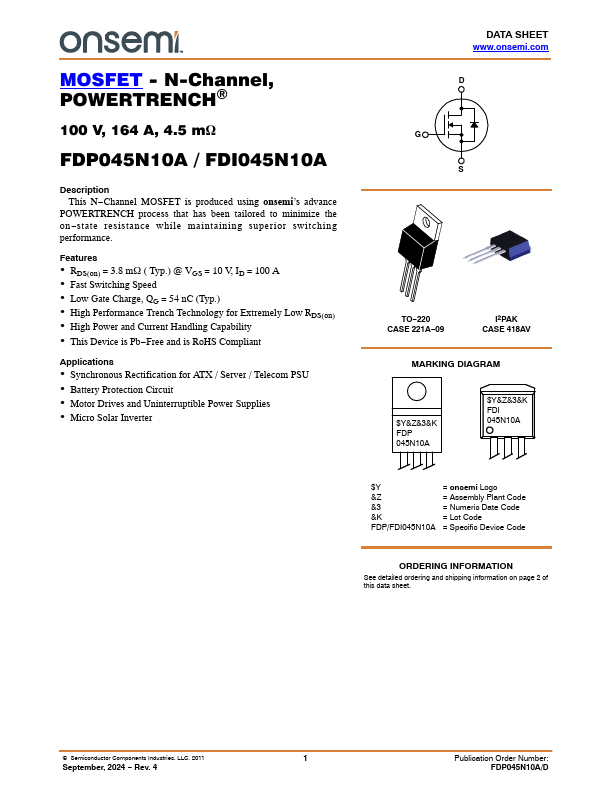

📥 Download Datasheet Datasheet Preview Page 1

Description

FDP045N10A / FDI045N10A MOSFET * N-Channel, POWERTRENCH) 100 V, 164 A, 4.5 mW .
This N. Channel MOSFET is produced using ON Semiconductor’s advance POWERTRENCH process that has been tailored to minimize the on. state.

📥 Download Datasheet

Preview of FDI045N10A PDF

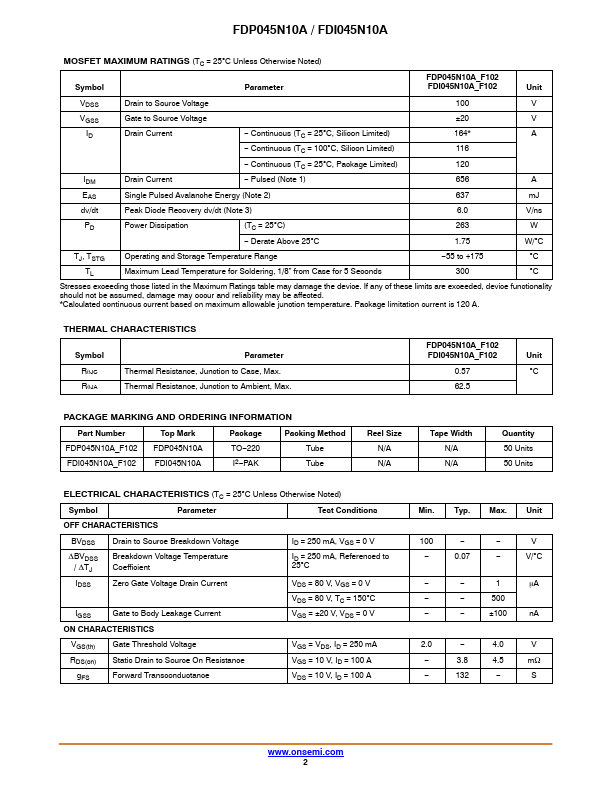

datasheet Preview Page 2 datasheet Preview Page 3

Features

* RDS(on) = 3.8 mW ( Typ. ) @ VGS = 10 V, ID = 100 A
* Fast Switching Speed
* Low Gate Charge, QG = 54 nC (Typ. )
* High Performance Trench Technology for Extremely Low RDS(on)
* High Power and Current Handling Capability
* This Device is Pb
* Free

Applications

* Synchronous Rectification for ATX / Server / Telecom PSU
* Battery Protection Circuit
* Motor Drives and Uninterruptible Power Supplies
* Micro Solar Inverter www. onsemi. com D G S TO
* 220 CASE 221A
* 09 I2PAK CASE 418AV MARKING DIAGRAM $Y&Z&3&K FDP
