FDMF3039 * Smart Power Stage (SPS) Module FDMF3039 *Smart Power Stage (SPS) Module August 2017 .
The SPS family is ON Semiconductor’s fully optimized, ultra-compact, integrated MOSFET plus driver power stage solution for high-current, high-frequen.

datasheet Preview Page 1 from Datasheet4u.com

FDMF3039-ONSemiconductor.pdf

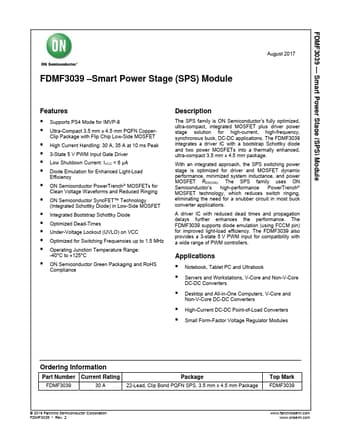

FDMF3039 Datasheet Preview — Preview of FDMF3039 PDF

Datasheet Details

Part number:

FDMF3039

Manufacturer:

ON Semiconductor ↗

File Size:

973.41 KB

Description:

SPS

Features

* Supports PS4 Mode for IMVP-8
* Ultra-Compact 3.5 mm x 4.5 mm PQFN Copper- Clip Package with Flip Chip Low-Side MOSFET
* High Current Handling: 30 A, 35 A at 10 ms Peak
* 3-State 5 V PWM Input Gate Driver
* Low Shutdown Current: IVCC < 6 µA
* Diode Emulation for Enhanced Lig

Applications

* The FDMF3039 integrates a driver IC with a bootstrap Schottky diode and two power MOSFETs into a thermally enhanced, ultra-compact 3.5 mm x 4.5 mm package. With an integrated approach, the SPS switching power stage is optimized for driver and MOSFET dynamic performance, minimized system inductance,
