FDMS030N06B - N-Channel MOSFET

FDMS030N06B Description

MOSFET * N-Channel, POWERTRENCH) 60 V, 100 A, 3 W FDMS030N06B .
This N. Channel MOSFET is produced using onsemi’s advance POWERTRENCH process that has been tailored to minimize the on. state resistanc.

FDMS030N06B Features

* RDS(on) = 2.4 m (Typ) at VGS = 10 V, ID = 50 A
* Advanced Package and Silicon Combination for Low RDS(on) and High Efficiency
* Fast Switching Speed
* 100% UIL Tested

FDMS030N06B Applications

* Synchronous Rectification for ATX / Server / Telecom PSU
* Battery Protection Circuit
* Motor drives and Uninterruptible Power Supplies
* Renewable system DATA SHEET www. onsemi. com Top Bottom S Pin 1 S SG D D D D PQFN8 5 y 6, 1.27P (Power 56) CASE 483AE PIN CO

📥 Download Datasheet

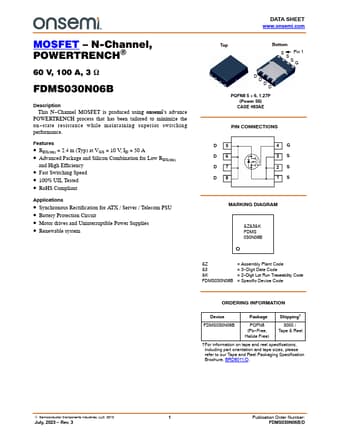

Preview of FDMS030N06B PDF
