FDS4559, MOSFET

MOSFET * Complementary, POWERTRENCH) 60 V FDS4559 General .
This complementary MOSFET device is produced using onsemi’s advanced PowerTrench process that has been especially tailored to minimize the on.

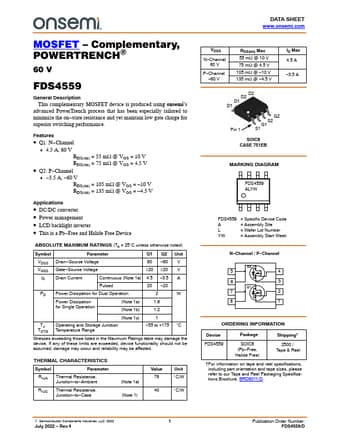

datasheet Preview Page 1 from Datasheet4u.com

FDS4559-ONSemiconductor.pdf

FDS4559 Datasheet Preview — Preview of FDS4559 PDF

Datasheet Details

Part number:

FDS4559

Manufacturer:

ON Semiconductor ↗

File Size:

262.56 KB

Description:

MOSFET

Features

* Q1: N
* Channel
* 4.5 A, 60 V RDS(on) = 55 mΩ @ VGS = 10 V RDS(on) = 75 mΩ @ VGS = 4.5 V
* Q2: P
* Channel
* 3.5 A,
* 60 V RDS(on) = 105 mΩ @ VGS =
* 10 V RDS(on) = 135 mΩ @ VGS =

Applications

* DC/DC converter
* Power management
* LCD backlight inverter
* This is a Pb
* Free and Halide Free Device ABSOLUTE MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Symbol Parameter Q1 Q2 Unit VDSS Drain
* Source Voltage 60
* 60 V VGSS Gate
