FDS4072N7 - N-Channel MOSFET

Datasheet Summary

Description

This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers.

It has been optimized for “low side” synchronous rectifier operation, providing an extremely low RDS(ON) in a small package.

Features

  • 12.4 A, 40 V RDS(ON) = 11 mΩ @ VGS = 4.5 V RDS(ON) = 9 mΩ @ VGS = 10 V.
  • High performance trench technology for extremely low RDS(ON).
  • High power and current handling capability.
  • Fast switching.
  • FLMP SO-8 package: Enhanced thermal performance in industry-standard package size.

📥 Download Datasheet

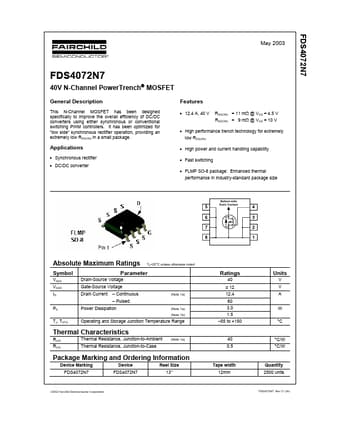

Datasheet preview – FDS4072N7

Datasheet Details

Part number FDS4072N7
Manufacturer Fairchild Semiconductor
File Size 199.52 KB
Description N-Channel MOSFET
Datasheet download datasheet FDS4072N7 Datasheet
Additional preview pages of the FDS4072N7 datasheet.

📁 Similar Datasheet

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text
FDS4072N7 May 2003 FDS4072N7 40V N-Channel PowerTrench MOSFET General Description This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switching PWM controllers. It has been optimized for “low side” synchronous rectifier operation, providing an extremely low RDS(ON) in a small package. Features • 12.4 A, 40 V RDS(ON) = 11 mΩ @ VGS = 4.
