FDS4080N7, N-Channel MOSFET

FDS4080N7 May 2003 FDS4080N7 40V N-Channel FLMP PowerTrench MOSFET General .
This N-Channel MOSFET has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional sw.

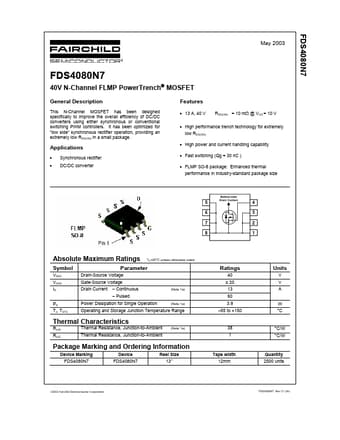

datasheet Preview Page 1 from Datasheet4u.com

FDS4080N7_FairchildSemiconductor.pdf

FDS4080N7 Datasheet Preview — Preview of FDS4080N7 PDF

Datasheet Details

Part number:

FDS4080N7

Manufacturer:

Fairchild Semiconductor

File Size:

262.85 KB

Description:

N-Channel MOSFET

Features

* 13 A, 40 V RDS(ON) = 10 mΩ @ VGS = 10 V
* High performance trench technology for extremely low RDS(ON)
* High power and current handling capability
* Fast switching (Qg = 30 nC )
* FLMP SO-8 package: Enhanced thermal performance in industry-standard package

Applications

* Synchronous rectifier DC/DC converter 5 6 7 8 Bottom-side Drain Contact 4 3 2 1 Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ, TSTG Drain-Source Voltage Gate-Source Voltage Drain Current
* Continuous
* Pulsed TA=25oC unless otherwise noted Parameter Ra
