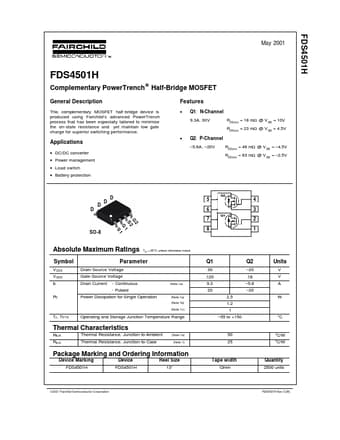

FDS4501H Datasheet, Mosfet, Fairchild Semiconductor

FDS4501H Features

• Mosfet
• Q1: N-Channel 9.3A, 30V RDS(on) = 18 mΩ @ V GS = 10V RDS(on) = 23 mΩ @ V GS = 4.5V
• Q2: P-Channel
    –5.6A,
    –20V RDS(on) = 46 mΩ @ V GS =

PDF File Details

Part number:

FDS4501H

Manufacturer:

Fairchild Semiconductor

File Size:

1.36MB

Download:

📄 Datasheet

Description:

Complementary powertrench half-bridge mosfet. This complementary MOSFET half-bridge device is produced using Fairchild’s advanced PowerTrench process that has been especially tail

FDS4501H Application

• Applications
• DC/DC converter
• Power management
• Load switch
• Battery protection D D D D D D DD Q2 5 6 Q1
