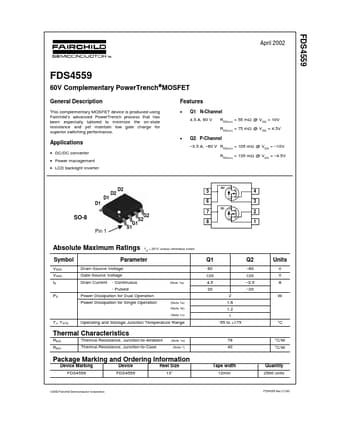

FDS4559 Datasheet, mosfet equivalent, Fairchild Semiconductor

FDS4559 Features

• Mosfet
• Q1: N-Channel 4.5 A, 60 V RDS(on) = 55 mΩ @ VGS = 10V RDS(on) = 75 mΩ @ VGS = 4.5V
• Q2: P-Channel
    –3.5 A,
    –60 V RDS(on) = 105 mΩ @ VGS

PDF File Details

Part number:

FDS4559

Manufacturer:

Fairchild Semiconductor

File Size:

147.38kb

Download:

📄 Datasheet

Description:

60v complementary powertrench mosfet. This complementary MOSFET device is produced using Fairchild’s advanced PowerTrench process that has been especially tailored to mini

FDS4559 Application

• Applications
• DC/DC converter
• Power management
• LCD backlight inverter D1 D D1 D DD2 D2 D 5 6 Q2 4 3 Q1 SO-8 Pin
