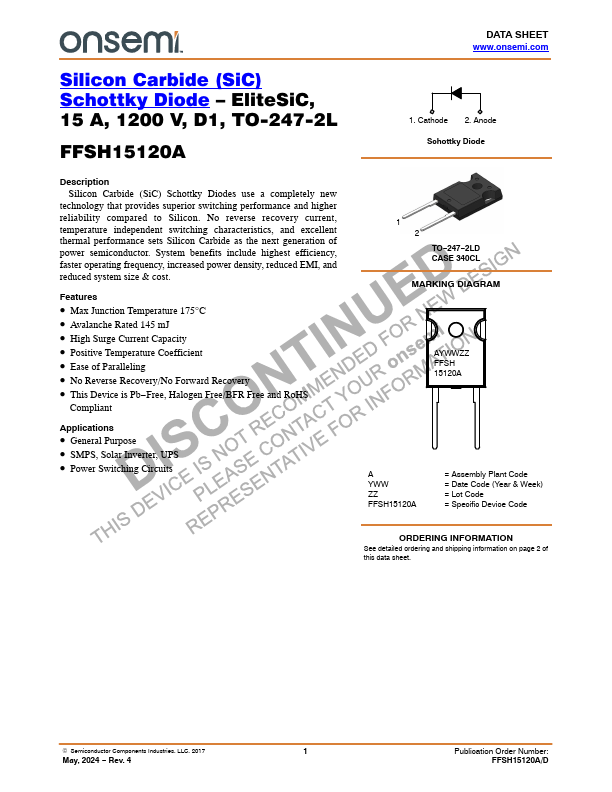

FFSH15120A Datasheet, Diode, ON Semiconductor

✔ FFSH15120A Features

Max Junction Temperature 175°C
Avalanche Rated 145 mJ
High Surge Current Capacity
Positive Temperature Coefficient
Ease of Paralleling
No Reverse Recovery/No

✔ FFSH15120A Application

General Purpose
SMPS, Solar Inverter, UPS
Power Switching Circuits www.onsemi.com 1. Cathode 2. Anode

PDF File Details

ON Semiconductor manufacturer logo

Part number:

FFSH15120A

Manufacturer:

ON Semiconductor ↗

File Size:

444.83 KB

Download:

📄 Datasheet

Description:

Silicon carbide schottky diode. Silicon Carbide (SiC) Schottky Diodes use a completely new technology that provides superior switching performance and higher reliabi

📥 Download PDF (444.83 KB)
