IRFM120A Datasheet - ON Semiconductor

IRFM120A Power MOSFET

IRFM120A Features

* IEEE802.3af Compatible ! Avalanche Rugged Technology ! Rugged Gate Oxide Technology ! Lower Input Capacitance ! Improved Gate Charge ! Extended Safe Operating Area ! Lower Leakage Current : 10 #A (Max.) @ VDS = 100V ! Lower RDS(ON) : 0.155 ! (Typ.) BVDSS = 100 V RDS(on) = 0.2 ! ID = 2.3 A SOT-223 2

IRFM120A-ONSemiconductor.pdf

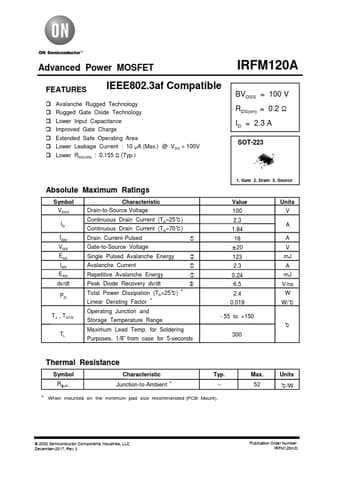

Preview of IRFM120A PDF
IRFM120A Datasheet Preview Page 2 IRFM120A Datasheet Preview Page 3

Datasheet Details

Part number:

IRFM120A

Manufacturer:

ON Semiconductor ↗

File Size:

320.53 KB

Description:

Power mosfet.
